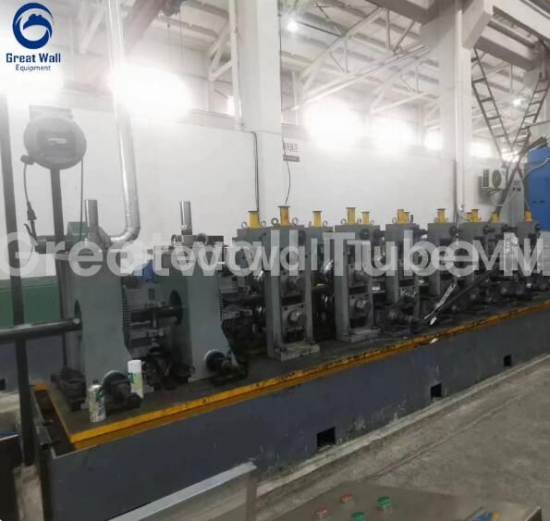

ERW76 Small Diameter Welded Pipe Machine
Key Features of ERW76 Small Diameter Welded Pipe Machine
Precision Welding: High-frequency straight seam welding ensures strong, smooth, and defect-free welds.
Thick-Walled Capability: Handles pipe thicknesses up to 8.0mm with high dimensional accuracy.
Small-Diameter Pipes: Efficient production for pipes with diameters starting from φ60mm up to φ76mm.
Automated Production: Full automation from coil loading, forming, welding, sizing, straightening, to packaging.
Customizable Layout: Production line design can be tailored to fit different workshop sizes and production requirements.
High Efficiency: Optimized roll configuration and production speed reduce labor cost and increase throughput.
Applications of ERW76 Small Diameter Welded Pipe Mill Line
Oil & Gas Pipelines: Thick-walled precision pipes for high-pressure fluid transport.
Chemical Industry: Pipes resistant to corrosion and capable of withstanding high pressure.
Structural Steel & Machinery: Precision pipes for mechanical and structural applications.
Water & Gas Transport: Small-diameter pipelines for residential and industrial distribution networks.
Why Choose Great Wall as Your Small Pipe Mill Line Manufacturer
30+ Years of Experience: Decades of expertise in designing and manufacturing small pipe mill lines.
Strict Quality Control: Ensures precise dimensions, strong welds, and long-lasting equipment.
Global Customer Trust: Hundreds of clients worldwide across oil & gas, chemical, and construction industries.
Full-Service Support: From installation and training to spare parts and long-term technical assistance.
Contact us today for a customized Small Pipe Mill Line solution!
loading
unwinding
straightening
clamping and leveling
shearing and welding
accumulator
forming, high-frequency extrusion welding, removing external (internal) burrs, weld polishing, weld flaw detection, water cooling, sizing, rough straightening
cold cutting saw→ transition roller
fine straightening machine
conveyor roller
automatic packaging
marking
inspection and collection
storage
| Item name | Technical Parameters |
| Raw material | Low carbon steel, low alloy steel galvanized steel and high strength steel etc. |
| Total power | About 800KVA |
| Roll weight | ≤6T |
| Round tube | Φ25～φ76mm，Tube thickness: 2.0～7.0mm |
| Main specification | Φ76x7mm |
| Tube mill speed | 15-50m/min |
| Tube length | 4-12m |
| Recommended plant dimension | 100m×24m×8m (Distance from overhead crane track to ground) Customized design can be made according to the customer's workshop |
