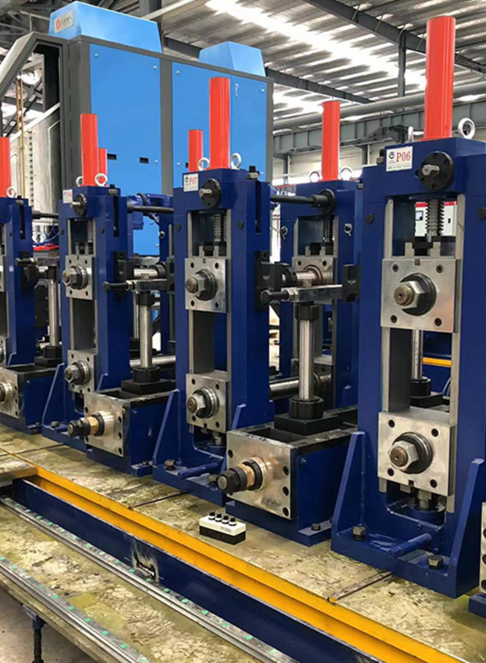

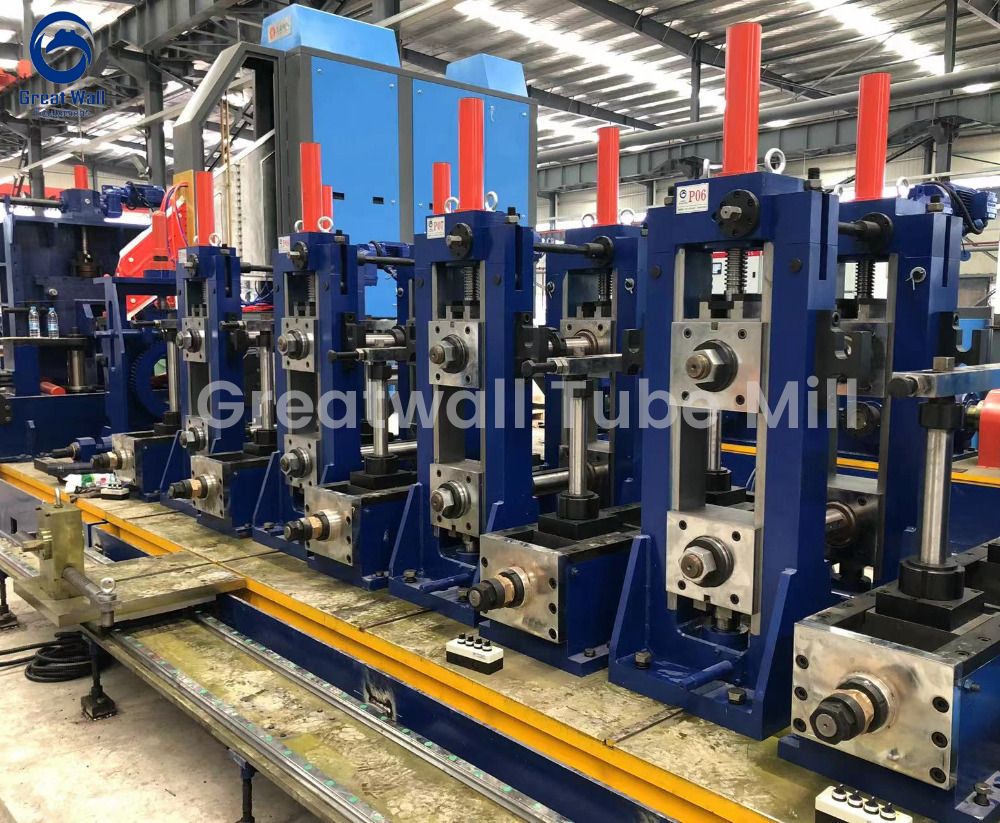

ERW230x4.0mm high frequency straight seam welded pipe production line

ERW230mm high frequency straight seam welded pipe production line is mainly used to produce electric welded steel pipes with a diameter of φ76～φ219mm and a thickness of 1.8-5.0mm. This production line is designed and manufactured based on reference to similar equipment at home and abroad, bold innovation, and listening to user opinions. This equipment is economical and reliable in operation with good stability.

Next Product Inquire Now

Production Process
Basic Parameters

loading

unwinding

straightening

clamping and leveling

shearing and welding

accumulator

forming, high-frequency extrusion welding, removing external (internal) burrs, welding seam polishing, welding seam flaw detection, water cooling, sizing, rough straightening

cold cut sawing→ conveying rollers

automatic packaging

marking

inspection and collection

storage

Item name	Technical Parameters
Raw material	Low carbon steel, low alloy steel, galvanized steel and high strength steel etc.
Total power	About 1000KVA
Roll weight	≤15T
Round tube	Φ76～φ230mm，Tube thickness: 1.8～5.0mm
Main specification	Φ230x2mm
Tube mill speed	15-50m/min
Tube length	4-12m
Recommended plant dimension	130m×24m×8m (Distance from overhead crane track to ground) Customized design can be made according to the customer's workshop
