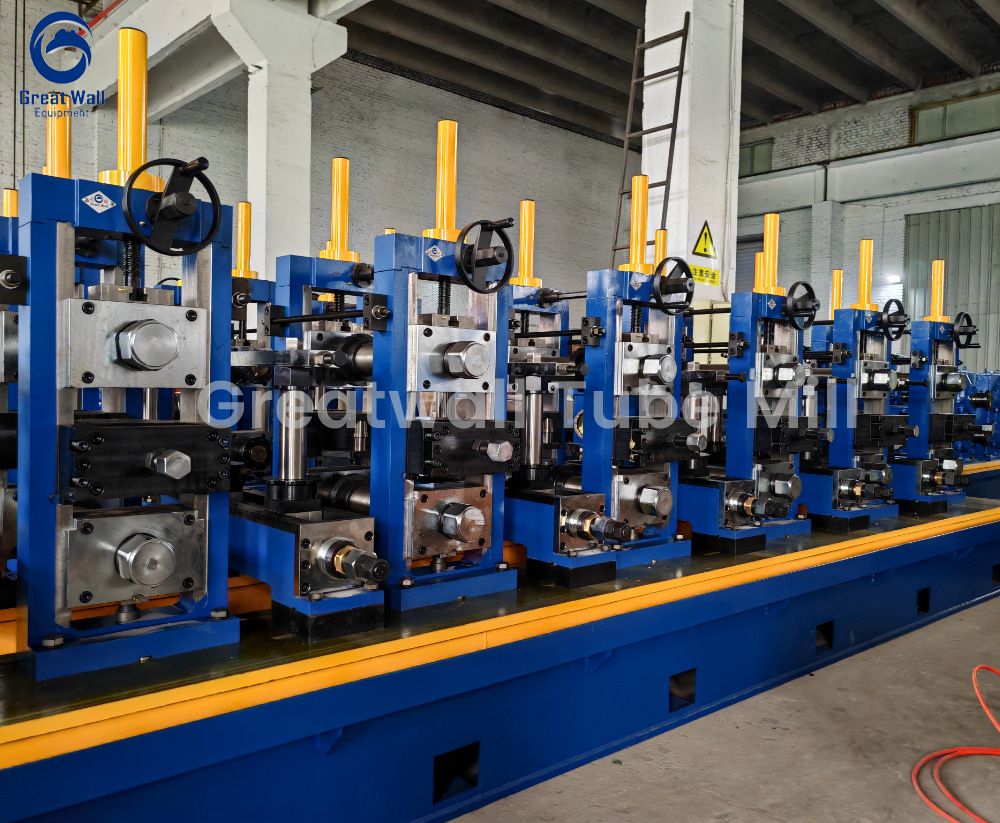

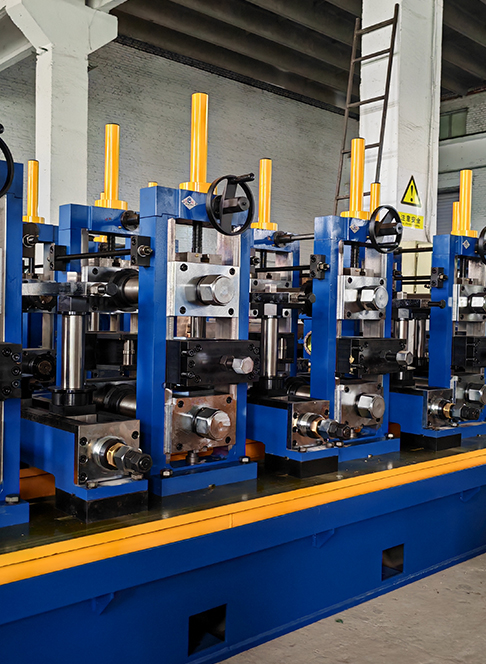

ERW180mm high frequency straight seam welded pipe production line

ERW180mm high frequency straight seam welded pipe production line is mainly used to produce electric welded steel pipes with a diameter of φ50~φ180mm and a thickness of 1.2-3.0mm. This production line is designed and manufactured based on reference to similar equipment at home and abroad, bold innovation, and listening to user opinions. This equipment is economical and reliable in operation with good stability.

  • Production Process
  • Basic Parameters

loading

unwinding

straightening

clamping and leveling

shearing and welding

accumulator

forming, high-frequency extrusion welding, removing external (internal) burrs, welding seam polishing, welding seam flaw detection, water cooling, sizing, rough straightening

cold cut sawing→ conveying rollers

automatic packaging

marking

inspection and collection

storage

Item nameTechnical Parameters
Raw materialLow carbon steel, low alloy steel, galvanized steel  and high strength steel etc.
Total powerAbout 600KVA
Roll weight≤10T
Round tubeΦ50~φ180mm,Tube thickness: 1.2~3.0mm
Main specificationΦ180x1.8mm
Tube mill speed15-50m/min
Tube length4-12m
Recommended plant dimension100m×24m×8m (Distance from overhead crane track to ground)
Customized design can be made according to the customer's workshop
