The HG76 ERW Tube Mill is a high-frequency welded pipe production line designed for manufacturing round steel pipes with diameters from 25 mm to 76 mm, as well as square and rectangular steel tubes. With a production speed of 20–100 m/min and a 300 kW high-frequency welding system, the HG76 tube mill supports continuous production of welded pipes for construction, furniture, mechanical structures, and industrial applications.
Main Features of ERW76 ERW Pipe Making Machine
High Frequency Welding: Delivers smooth, uniform weld seams with high precision and strength.
Quick Roll Change System: Minimizes downtime and improves production flexibility.
PLC & HMI Automation: Centralized control with digital adjustment of speed, cutting length, and welding parameters.
Energy Efficient Design: Optimized electrical system and low-resistance transmission reduce power consumption.
Versatile Applications: Suitable for round, square, and rectangular pipes, with optional forming modules.
What Pipes Can the HG76 ERW Tube Mill Produce?
The HG76 ERW tube mill supports the production of round, square, and rectangular welded steel tubes within its forming and sizing range. It is suitable for steel pipe manufacturers supplying multiple industrial markets.
● Round Steel Pipes
With a diameter range of 25–76 mm, the HG76 tube mill is suitable for producing round welded steel pipes used in structural frameworks, mechanical components, general fabrication, and industrial piping applications.
● Square Steel Tubes
The production line can manufacture square tubes from 15 × 15 mm to 60 × 60 mm. These tubes are widely used for steel furniture, building frameworks, metal structures, and equipment frames.
● Rectangular Steel Tubes
The HG76 supports rectangular tube sizes from 10 × 20 mm to 40 × 80 mm, making it suitable for producing steel profiles used in metal fabrication, structural supports, shelving systems, and general engineering applications.
The required roll tooling and sizing configuration are selected according to the finished tube dimensions and wall thickness.
FAQ – Common Questions About ERW Pipe Making Machine
Q:What is the difference between ERW and SAW pipe production?
A:ERW (Electric Resistance Welding) uses high frequency current to heat and join steel edges, ideal for smaller-diameter pipes with smooth seams. SAW uses submerged arc welding for larger pipes.
Q:Can the HG76 ERW line produce square or rectangular pipes?
A:Yes. With additional forming and sizing rolls, it can produce various shapes such as round, square, and rectangular tubes.
Q:Do you provide installation and training services?
A:Yes, we provide complete installation, commissioning, and operator training for all ERW tube mill lines.
Explore More ERW Tube Mill Models
If your production requirements extend beyond the HG76 pipe diameter range, explore our complete ERW Tube Mill Lines to compare different pipe sizes, wall thickness ranges, welding capacities, and production line configurations.
Uncoiler:The starting unit of the HG76 ERW Pipe Making Machine- ensuring continuous material supply for the entire production line
Shearing and welding:A key efficiency-enhancing step for the ERW Pipe Making Machine – eliminating downtime and maintaining 20-100m/min production speed
Accumulator:Acts as a “material buffer” for the ERW Pipe Making Machine – ensuring the forming and welding sections run non-stop even during shearing/welding

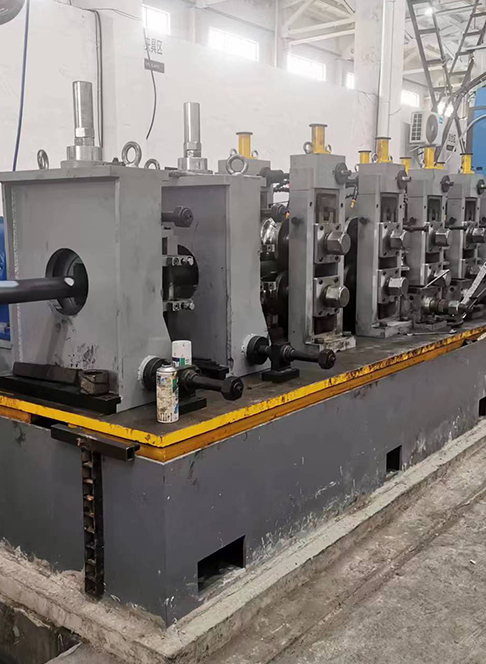

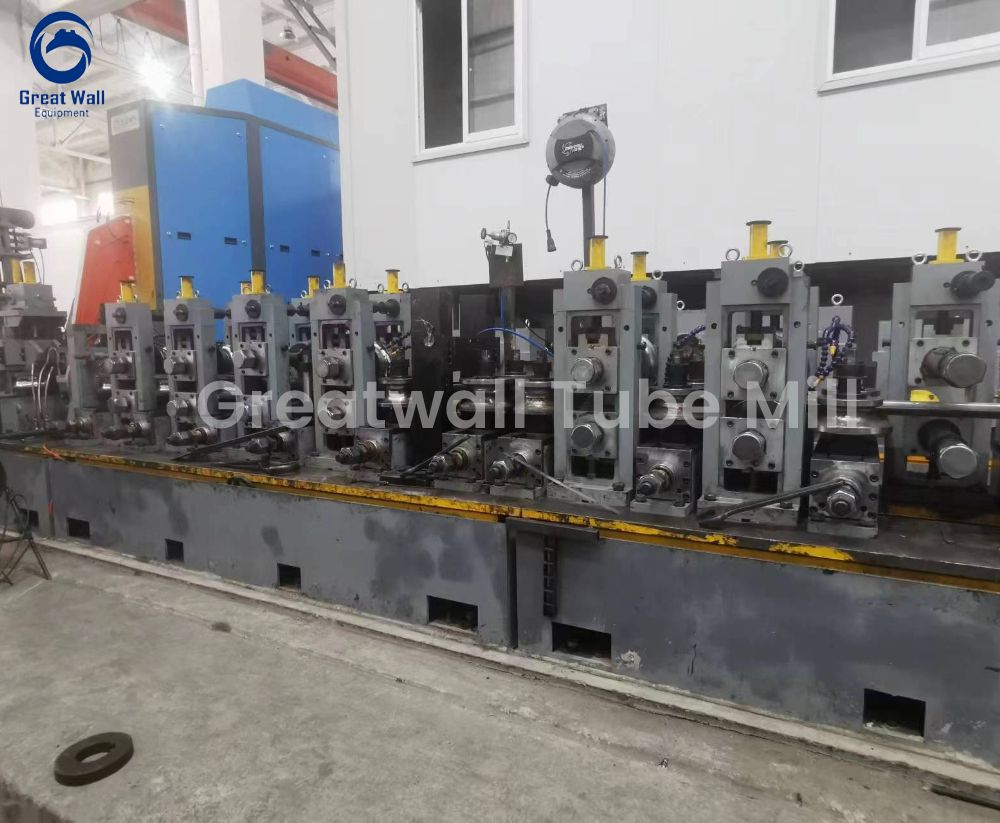

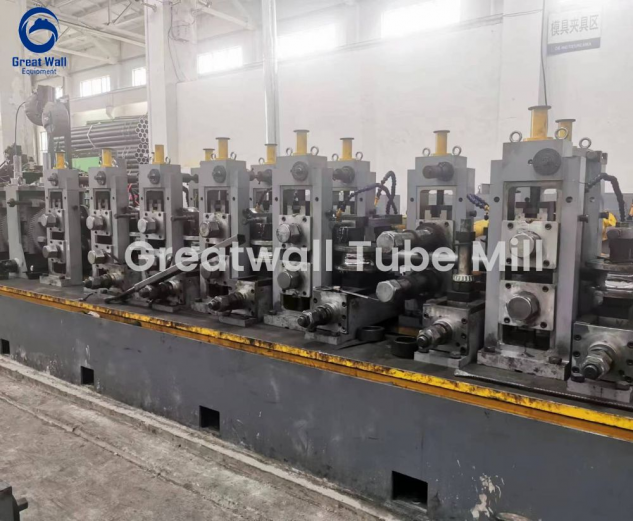

Forming, high-frequency welding, external burr removal, cooling, sizing, rough straightening:The core working part of the HG76 ERW pipe machine - uses 300KW high-frequency energy to ensure a strong weld, remove burrs for a smooth surface, cool to stabilize the pipe structure, and meet the size requirements of φ25-φ76mm precision
Flying sawing cutting:A high-precision unit of the ERW Pipe Making Machine – it cuts finished pipes into 4-12m lengths (customizable) , matching the line’s production rhythm without slowing down
Roller after sawing
Inspection and collection
Packing
Weighing
Marking
Storage
Technical Specifications of HG76 ERW Tube Mill Line
| Item name | Technical Parameters |
| Raw material | Low carbon steel, low alloy steel, galvanized steel strip, high strength steel, etc. |
| Total power | About 500KVA |
| High frequency welding machine | 300KW |
| Roll weight | ≤3T |
| Round tube | φ25～φ76mm，Tube thickness: 0.8～3.5mm |
| Square tube | 15X 15～60X 60mm，Tube thickness: 0.8～3.5mm |
| Rectangular tube | 10x20～40x80mm，Tube thickness: 0.8～3.5mm |
| Tube mill speed | 20-100m/min |
| Tube length | 4-12m |
| Recommended plant dimension | 70m×18m×6m (≥6m; Distance from overhead crane track to ground) (Customized design can be made according to the customer's workshop） |
Why Choose HG76 ERW Pipe Making Machine? Parameter Advantages Explained
Wide material compatibility: Supports low carbon steel, low alloy steel, galvanized steel, and high-strength steel – the ERW Pipe Making Machine adapts to diverse production needs, no need to invest in separate equipment for different materials.
High power & efficiency: 300KW high-frequency welding machine + 20-100m/min speed – the ERW Pipe Making Machine ensures strong, stable welds while boosting daily output (up to 1000+ tons for φ50mm pipes), ideal for large-scale orders.
Versatile pipe production: Covers φ25-φ76mm round pipes, 15X15-60X60mm square pipes, and 10x20-40x80mm rectangular pipes – one ERW Pipe Making Machine replaces 2-3 single-spec lines, saving workshop space and labor costs.
Customizable workshop fit: Adapts to 70m×18m×6m or customer-specific factory sizes – the ERW Pipe Making Machine fits your existing layout, avoiding expensive workshop renovations.
