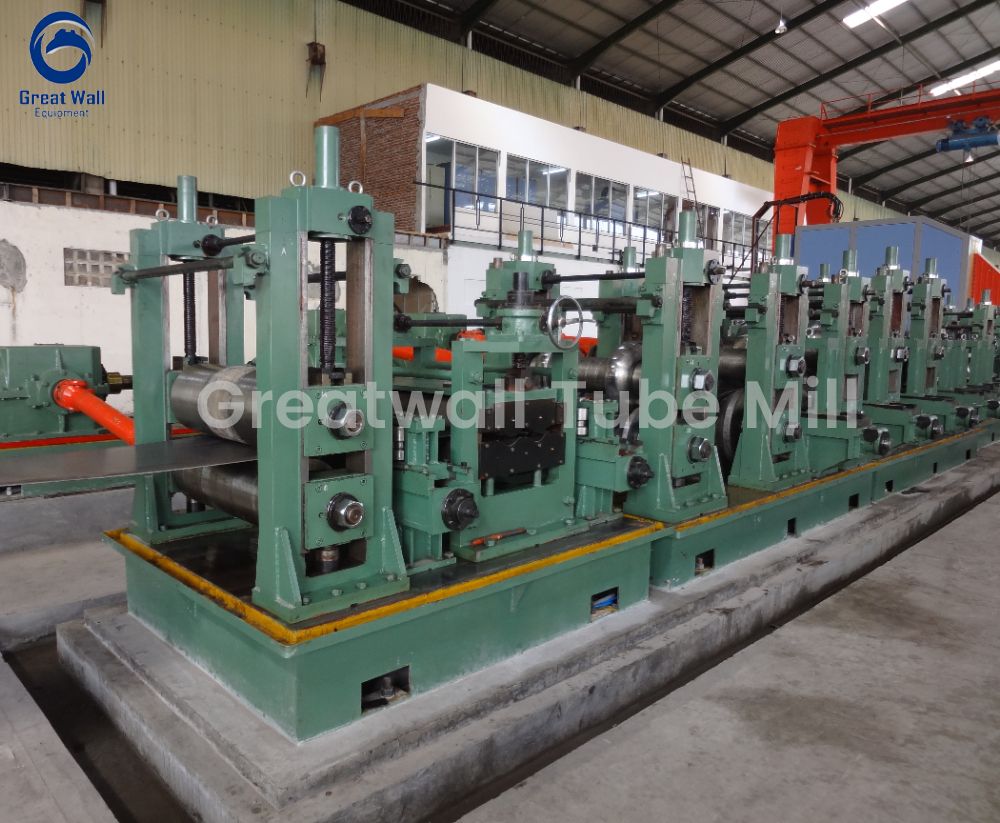

HG325 high frequency straight seam welded pipe production line

HG325 high frequency straight seam welded pipe production line is mainly used to produce electric welded steel pipes with a diameter of φ165~φ325mm and a tube thickness of 3.0~12.0mm. It can also produce square and rectangular pipes and special-shaped pipes that do not exceed the range of round pipes.

  • Production Process
  • Basic Parameters

Uncoiler

Shearing and welding

Accumulator

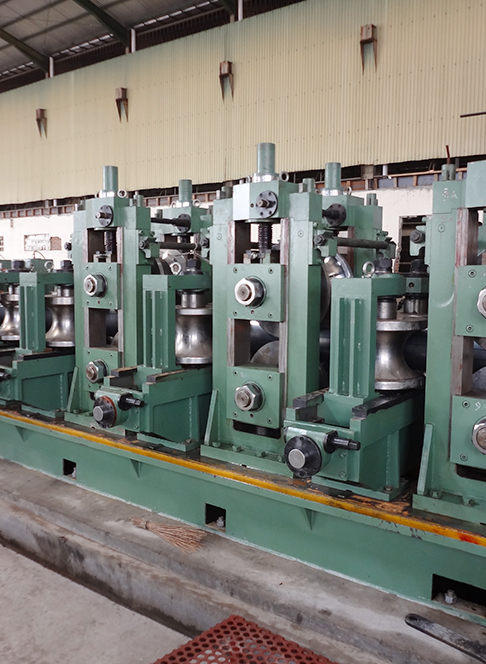

Forming, high-frequency welding, external burr removal, cooling, sizing, rough straightening

Flying sawing cutting

Roller after sawing

Inspection and collection

Packing

Weighing

Marking

Storage

Item nameTechnical Parameters
Raw materialLow carbon steel, low alloy steel, galvanized steel strip, high strength steel, etc.
Total powerAbout 1600KVA
High frequency welding machine800KW
Roll weight≤25T
Round tubeφ165~φ325mm,Tube thickness:3.0~12.0mm
Square tube130X 130~250X 250mm,Tube thickness:3.0~10.0mm
Rectangular tube120x140~200x300mm,Tube thickness:3.0~10.0mm
Tube mill speed15~30m/min
Tube length4-12m
Recommended plant dimension170m×24m×8m (≥8m; Distance from overhead crane track to ground)
(Customized design can be made according to the customer's workshop)
