Uncoiler
Shearing and welding
Accumulator

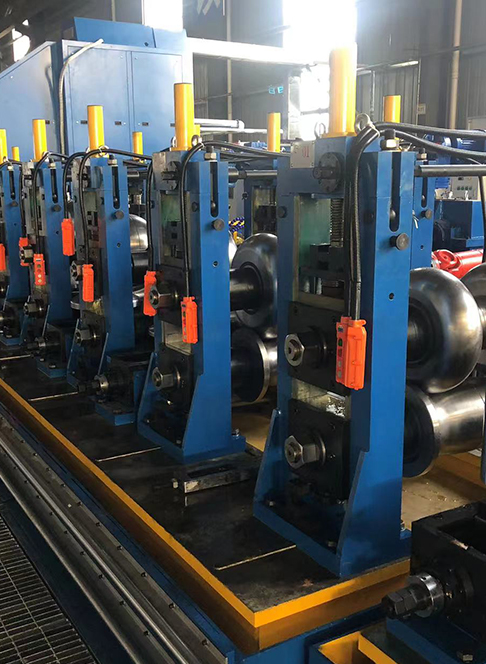

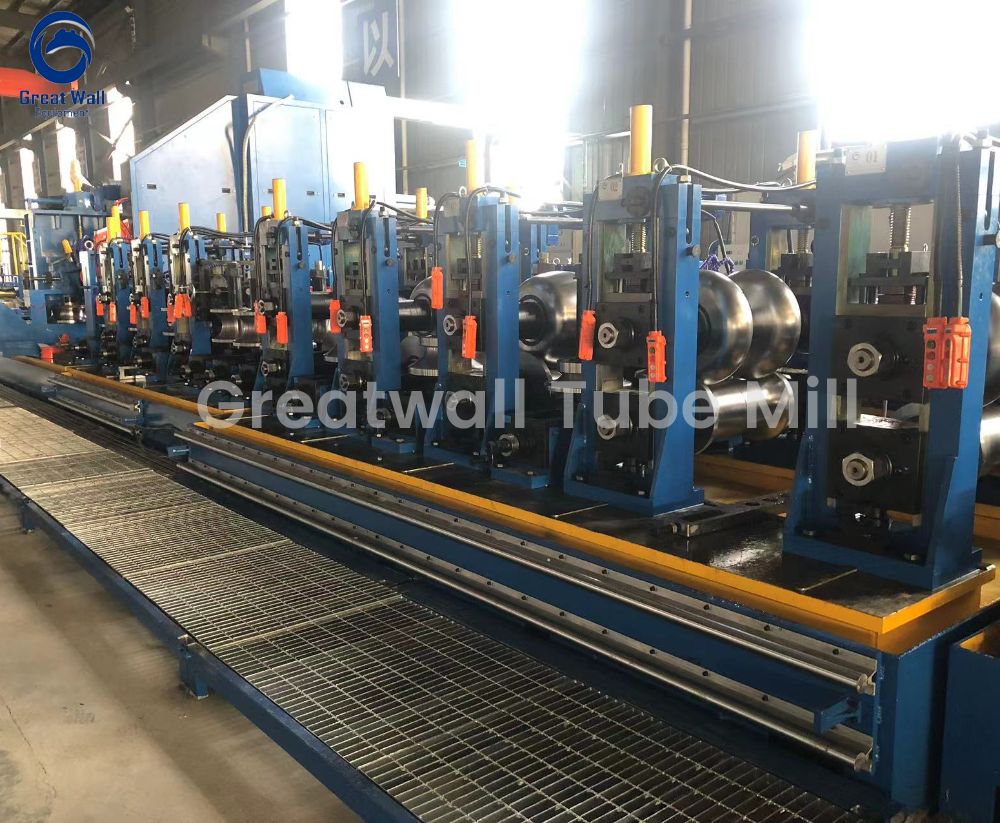

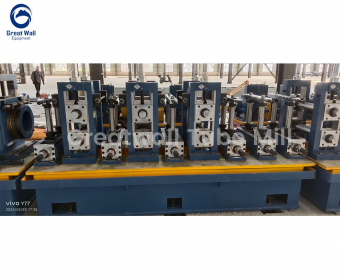

Forming, high-frequency welding, external burr removal, cooling, sizing, rough straightening
Flying sawing cutting
Roller after sawing
Inspection and collection
Packing
Weighing
Marking
Storage
| Item name | Technical Parameters |
| Raw material | Low carbon steel, low alloy steel, galvanized steel strip, high strength steel, etc. |
| Total power | About 1200KVA |
| High frequency welding machine | 600KW |
| Roll weight | ≤15T |
| Round tube | φ114～φ219mm，Tube thickness:2.0～8.0mm |
| Square tube | 90X 90～170X 170mm，Tube thickness: 2.0～6.5mm |
| Rectangular tube | 80x100～200x140mm，Tube thickness:2.0～6.5mm |
| Tube mill speed | 15～55m/min |
| Tube length | 4-12m |
| Recommended plant dimension | 140m×24m×8m (≥8m; Distance from overhead crane track to ground) (Customized design can be made according to the customer's workshop） |
