Loading
Uncoiling
Straightening
Clamping and Leveling
Shearing and Butt Welding →Accumulator

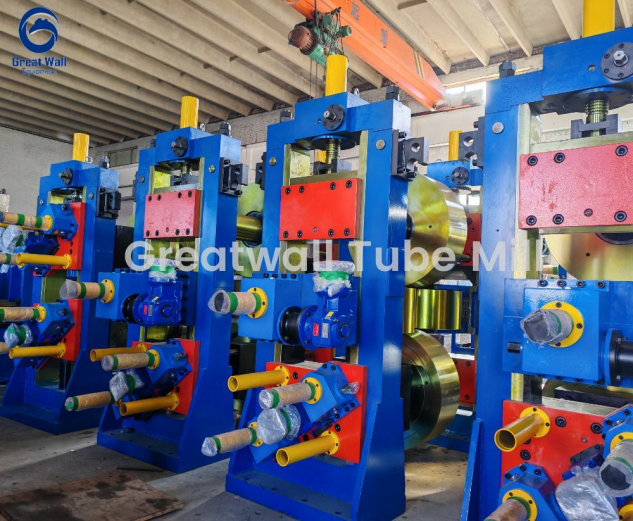

Forming, High-frequency Extrusion Welding, External (Internal) Burr Removal, Zinc Spraying, Weld Polishing, Water Cooling, Weld Eddy Current Flaw Detection, Ultrasonic Flaw Detection Position, Sizing, Rough Straightening
Milling and Cutting
Sizing
Conveyor Roller
Automatic Palletizing, Manual Packing
Marking
Inspection and Collection
Warehousing
| Item name | Technical Parameters |
| Raw material | Low carbon steel, low alloy steel, Zn-Al-Mg alloy etc. |
| Total power | About 2500KVA |
| High frequency welding machine | 1000kw |
| Roll weight | ≤32T |
| Square tube | 170x170～300x300mm |
| Rectangular tube | Height 170～300mm; Width 170～300mm |
| Thickness | 4.0～14.0mm |
| Tube mill speed | 10～20m/min |
| Tube length | 4～12m |
| Recommended plant dimension | 220m×24m×8m (Distance from overhead crane track to ground) (Customized design can be made according to the customer's workshop） |
