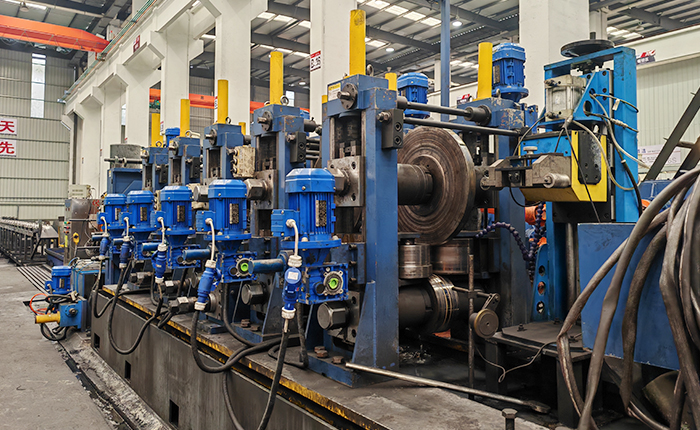

F100x100x5.0mm direct square cold-bent welded pipe production line is used to produce square and rectangular electric welded steel pipes in metallurgy, construction, transportation, machinery, vehicles and other industries. The strip steel is formed into an open pipe in the forming unit, and then welded into a straight seam welded pipe by high frequency. After cooling, it is sized, shaped and straightened in the sizing machine to become a high-strength square and rectangular pipe of the required specifications.
Basic Parameters
| Item name | Technical Parameters |
| Raw material | Low carbon steel, low alloy steel and high strength steel Q700 etc. |
| Total power | About 630KVA |
| Roll weight | ≤8T |
| Round tube | Φ50～φ114mm，Tube thickness: 1.5～5.0mm |
| Tube mill speed | 20-60m/min |
| Tube length | 4-9m |
| Recommended plant dimension | 90m×18m×6m (Distance from overhead crane track to ground) Customized design can be made according to the customer's workshop |
