API Tube Mill for Oil and Gas Industry
Great Wall API Tube Mill is designed for manufacturing high-frequency welded steel pipes used in oil and natural gas transmission. The production line covers pipe diameters from 50 mm to 610 mm and integrates strip preparation, precision forming, high-frequency welding, weld seam treatment, sizing, cutting, and quality inspection.
Our API pipe mill solutions support the production of high-strength welded line pipes according to specified API 5L and ASTM requirements. With flexible equipment configurations and multiple ERW pipe mill models, Great Wall provides production solutions for different pipe diameters, wall thicknesses, steel grades, and production capacity requirements.
Global oil and gas infrastructure continues to expand with increasing investments in long-distance transmission pipelines and energy distribution networks. High-pressure operation, harsh environments, and strict safety regulations require pipeline steel pipes with superior strength and weld integrity.
Standards issued by the American Petroleum Institute, particularly API 5L, define the technical requirements for line pipes used in crude oil and natural gas transportation. These standards demand:
High tensile and yield strength
Stable weld seam quality
Accurate dimensional tolerance
Reliable hydrostatic and NDT performance
High frequency straight seam welded pipes (HFW/ERW) have become a mainstream solution due to their production efficiency, consistent welding performance, and cost effectiveness. Advanced API standard welded pipe production lines are essential for meeting international certification and large-scale pipeline project requirements.
Great Wall offers API tube mill production lines for different oil and gas pipe manufacturing requirements. Each model is designed for a specific pipe diameter and wall thickness range, allowing manufacturers to select suitable equipment according to their production plans.
API Tube Mill Model | Pipe Diameter | Wall Thickness | Pipe Length |
|---|---|---|---|

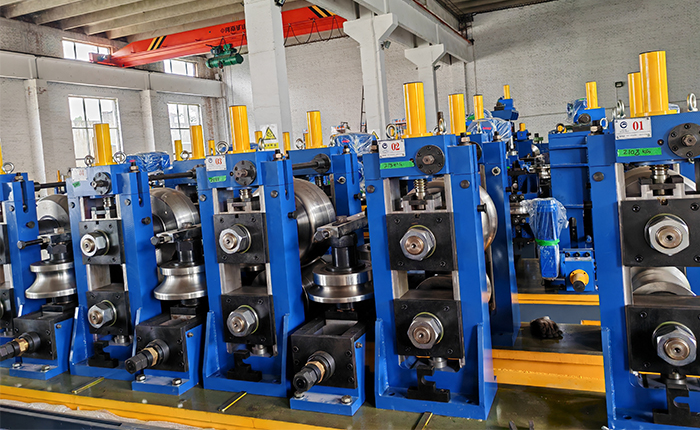

ERW141.3 | 60.3–141.3 mm | 3.0–8.0 mm | 6–12 m |

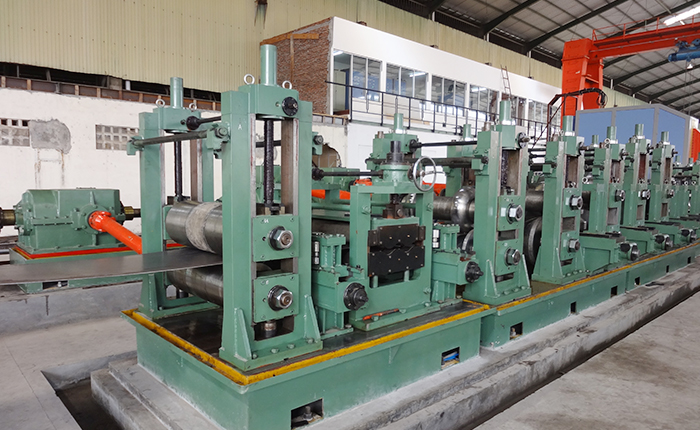

ERW273 | 114.3–273.1 mm | 4.0–10.0 mm | 6–12 m |

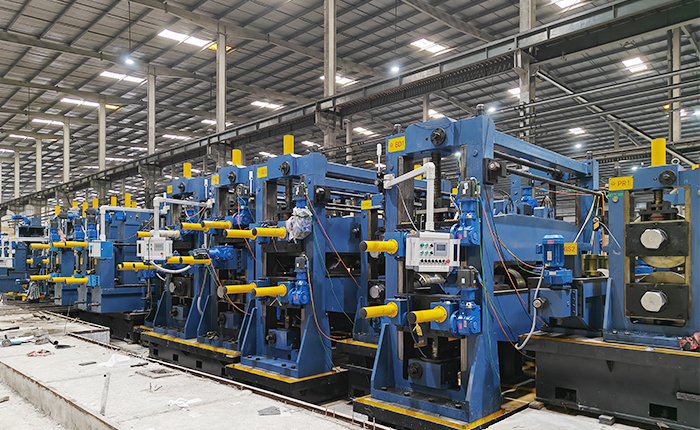

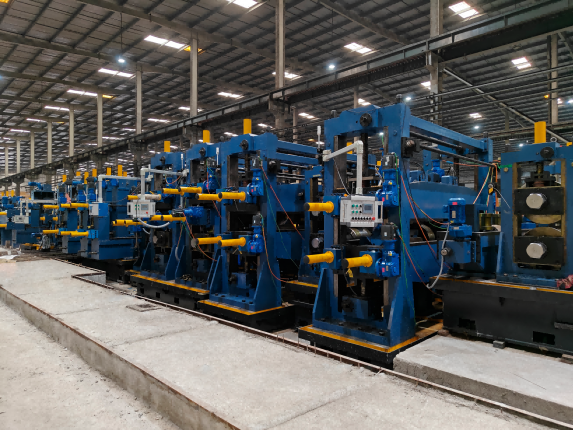

ERW355 | 114.3–355.6 mm | 4.0–12.7 mm | 6–12 m |

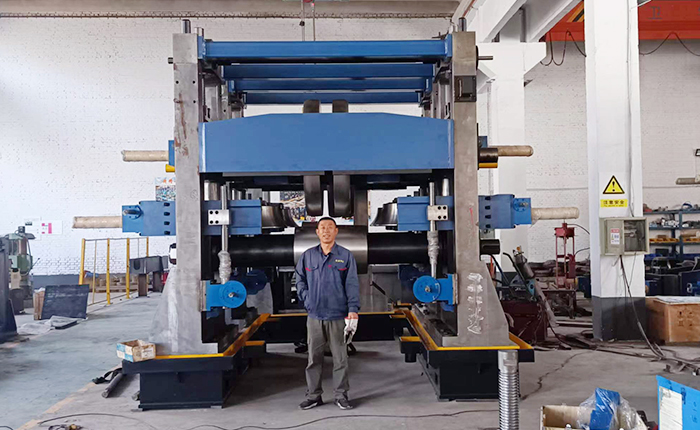

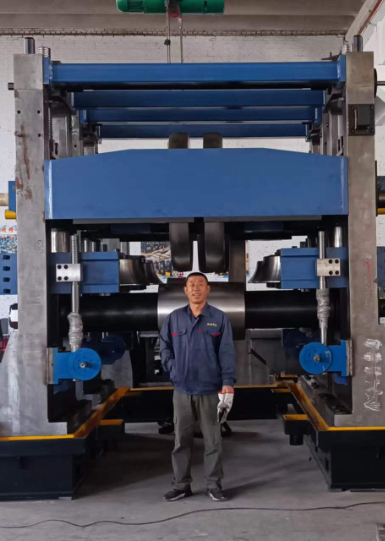

ERW426 | 219.1–406.4 mm | 4.0–12.7 mm | 5–13 m |
The ERW141.3 production line is suitable for smaller-diameter oil and gas transmission pipes, while the ERW273 and ERW355 models accommodate wider diameter and wall thickness ranges. The ERW426 line is designed for larger-diameter pipeline production.
For API tube mill projects, the final equipment configuration should be determined by the required pipe specifications, material grades, welding requirements, and annual production capacity.
The forming section progressively shapes steel strip into a round pipe profile through multiple roll stands. Proper roll design and forming adjustment help maintain consistent pipe geometry, stable strip edges, and accurate alignment before welding.
The API tube mill uses high-frequency electric resistance welding technology to join the strip edges continuously. Controlled welding parameters and squeeze-roll pressure are essential for achieving consistent weld seam formation during high-speed pipe production.
The production process includes internal and external weld bead removal and weld seam heat treatment. These processes support the downstream dimensional requirements and mechanical performance of high-frequency welded line pipes.
The API pipe production process incorporates ultrasonic inspection and can be configured with additional testing equipment, including hydrostatic testing and offline nondestructive inspection. These inspection stages help manufacturers identify weld defects and verify pipe quality according to applicable production requirements.
From uncoiling and strip preparation to forming, welding, sizing, cutting, and finishing, the API tube mill integrates multiple manufacturing processes into a continuous production workflow. Equipment configurations can be selected according to the required pipe specifications and inspection procedures.
Common process: material preparation → uncoiling → straight head pinching and leveling → shearing and welding → Accumulator → fine leveling → steel plate UT flaw detection → rough forming (F.F.) → fine forming → weld seam guiding → five-roller extrusion → high frequency welding → internal (external) burr removal → weld seam medium frequency annealing (NQT) → weld seam marking line spraying → pulling out → air cooling → water cooling → online ultrasonic flaw detection → sizing → sawing → roller table
Advanced Requirements:
Roller table after sawing → offline straightening → tube end chamfering mill→ water pressure test →
offline ultrasonic weld seam, pipes and pipe end flaw detection → weighing and length measurement → Spraying → labeling → automatic packaging → warehousing.
Pipeline API 5L steel grade, chemical composition and mechanical properties
| Dimensional tolerance | ||||||
| Standard | Outer diameter tolerance | Thickness tolerance | ||||
| A25.A.B | X42-X70 | |||||
| D<60.3 | +0.41/-0.40mm | D<73 | +20/-12.5% | D≥73 | +15/-12.5% | |
| API SPEC 5L | D≥60.3 | +0.75/-0.40mm | D≥73 | +15/-12.5% | D>73 | +15/-12.5% |
| Mechanical properties | |||||
| Standard | Steel grade | Yield Strength (MPa) | Tensile strength (MPa) | ||
| API SPEC 5L | PSL1 | ||||
| A25 | 172 | 310 | |||
| A | 207 | 331 | |||
| B | 241 | 414 | |||
| X42 | 290 | 414 | |||
| X46 | 317 | 434 | |||
| X52 | 359 | 455 | |||
| X56 | 386 | 490 | |||
| X60 | 414 | 517 | |||
| X65 | 448 | 531 | |||
| X70 | 483 | 565 | |||
| PSL2 | |||||
| Min | Max | Min | Max | ||
| B | 241 | 448 | 414 | 758 | |
| X42 | 290 | 496 | 414 | 758 | |
| X46 | 317 | 524 | 434 | 758 | |
| X52 | 359 | 531 | 455 | 758 | |
| X56 | 386 | 544 | 490 | 758 | |
| X60 | 414 | 565 | 517 | 758 | |
| X65 | 448 | 600 | 531 | 758 | |
| X70 | 483 | 621 | 565 | 758 | |
| X80 | 552 | 690 | 621 | 827 | |
API high frequency straight seam welded pipes are widely used across different oil and gas sectors:
Used for long-distance crude oil and natural gas transportation, requiring high-pressure resistance and strict quality control.
Applied in offshore oil and gas projects, demanding strong structural performance and enhanced corrosion resistance.
Connecting wellheads to processing facilities, requiring stable welding quality and consistent pipe dimensions.
Used for internal process pipelines where dimensional accuracy and reliability are critical.
Selecting an API tube mill requires evaluating more than the maximum pipe diameter. The production line must match the planned pipe specifications, steel grades, production volume, and quality inspection requirements.
Determine the minimum and maximum pipe diameters and wall thicknesses required for production. These parameters directly affect the selection of forming equipment, welding systems, sizing stands, and cutting units.
For example, the ERW141.3 line covers pipe diameters from 60.3 mm to 141.3 mm, while the ERW426 line handles larger pipe diameters from 219.1 mm to 406.4 mm.
Identify the line pipe grades planned for production, such as API 5L Grade B, X42, X52, X60, X65, or X70.
Higher-strength materials require careful consideration of forming loads, welding conditions, weld seam heat treatment, and inspection procedures. The actual steel grade capability must be evaluated against the selected mill configuration and material properties.
The required annual output, operating shifts, pipe dimensions, and material specifications influence the appropriate production line configuration.
Manufacturers should evaluate forming speed, welding capacity, coil handling, cutting cycles, and downstream inspection processes when planning their production capacity.
API line pipe production requires suitable inspection and testing procedures. Equipment selection should account for weld seam inspection, dimensional measurement, hydrostatic testing, and other applicable quality control requirements.
A complete API pipe mill project must also consider coil storage, material handling, accumulator capacity, pipe conveying, straightening, end finishing, inspection areas, and finished pipe storage.
Great Wall provides equipment design and technical support to help manufacturers plan API tube mill production lines according to their factory conditions and manufacturing objectives.
Both API tube mills and conventional ERW tube mills use electric resistance welding technology. However, their equipment configurations and quality control requirements differ according to the intended pipe applications.
Comparison | API Tube Mill | Conventional ERW Tube Mill |
|---|---|---|
Main Application | Oil and gas transmission line pipes | General structural and industrial pipes |
Production Standards | Configured for applicable API 5L requirements | Standards depend on the finished pipe application |
Material Requirements | Includes high-strength pipeline steel grades | Depends on equipment and pipe specifications |
Weld Seam Treatment | Selected according to API pipe production requirements | Depends on pipe application and specifications |
Inspection Equipment | Includes appropriate NDT and pressure testing arrangements | Inspection configuration varies by application |
Production Focus | Pipe quality, weld integrity, dimensional consistency | General welded pipe manufacturing |
An API tube mill is not defined solely by pipe diameter or welding technology. Its forming, welding, heat treatment, inspection, and finishing systems must be configured according to the line pipe grades and standards required by the manufacturer.
For general welded steel pipe production, explore our ERW Tube Mill Lines to learn about other equipment configurations.
An API tube mill is a welded pipe production line configured to manufacture steel pipes for oil and gas applications according to relevant API specifications. It combines pipe forming, welding, weld seam treatment, sizing, and quality inspection processes.
ERW refers to the electric resistance welding process, while API refers to standards established by the American Petroleum Institute. An API tube mill can use ERW welding technology, but its equipment configuration and inspection procedures must support the specified API line pipe requirements.
Great Wall's API tube mill range covers pipe diameters from 50 mm to 610 mm. Individual production line models have different diameter and wall thickness capabilities. The ERW141.3, ERW273, ERW355, and ERW426 models cover different pipe specification ranges.
API 5L X70 production requires suitable forming capacity, welding parameters, heat treatment, and quality inspection processes. The feasibility of producing X70 line pipes depends on the actual steel material and production line configuration and should be confirmed during technical evaluation.
To obtain a suitable equipment proposal, provide the required pipe diameter range, wall thickness, steel grades, pipe length, annual production capacity, and applicable pipe standards. Factory layout details and testing requirements are also useful for production line planning.
Planning a new API pipe manufacturing plant or upgrading an existing ERW production line?
Great Wall provides API tube mill equipment design, manufacturing, installation guidance, and technical support for oil and gas pipe production projects.
Share your required pipe diameter, wall thickness, steel grade, annual capacity, and inspection requirements with our engineering team.
